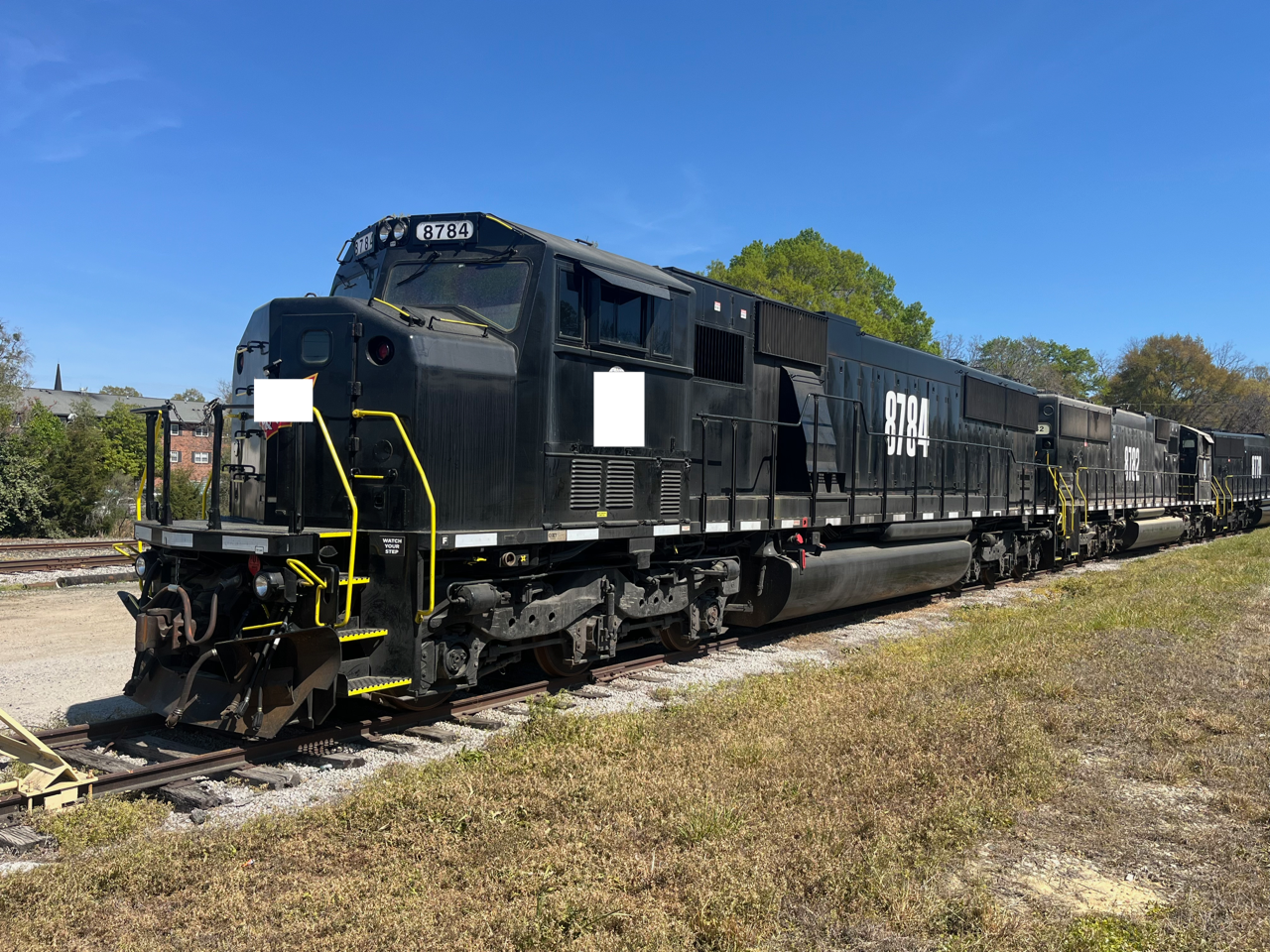

very low hour EMD SD 60s for sale - call for pricing

$0.00

In stock

Product Details

These SD 60s were purchased from CN where they were retired into storage in ‘good order and running’. CN spent over 1M ea. on restoring each locomotive. The kits for the engines purchased from EMD alone were over 600k ea.

Engines were completely rebuilt to Tier0+ standard. Most/many components were rebuilt or replaced with new.

These units were only in service 2 years after this project was completed .

Type and origin
Power type	Diesel-electric
Builder	Electro-Motive Division (EMD) General Motors Diesel (GMD)
Model	SD60
Build date	1984–1995
Total produced	1,533

Specifications
Configuration:
• AAR	C-C
• UIC	Co'Co'
Gauge	4 ft 8 + 1 ⁄ 2 in (1,435 mm) standard gauge 5 ft 3 in (1,600 mm), Brazil
Wheel diameter	40 in (1,000 mm)
Wheelbase	13 ft 7 in (4.14 m)
Length	71 ft 2 in (21.69 m)
Width	10 ft 3 in (3.12 m)
Height	15 ft 7.5 in (4.76 m)
Loco weight	368,000 lb (166,922 kg)
Prime mover	EMD 16-710G3A
Engine type	V16 diesel
Alternator	AR-11
Traction motors	D-87
Cylinders	16
MU working	AAR

Performance figures
Maximum speed	70 mph (113 km/h)
Power output	3,800 hp (2.8 MW ) at 900 rpm
Tractive effort	Starting: 114,000 lbf (510 kN) @ 25% Continuous: 100,000 lbf (445 kN) @9.8 mph (15.8 km/h)
