Six axle, high tractive effort EMD SD 18

Store / LOCOMOTIVES

$220,000.00

In stock

Product Details

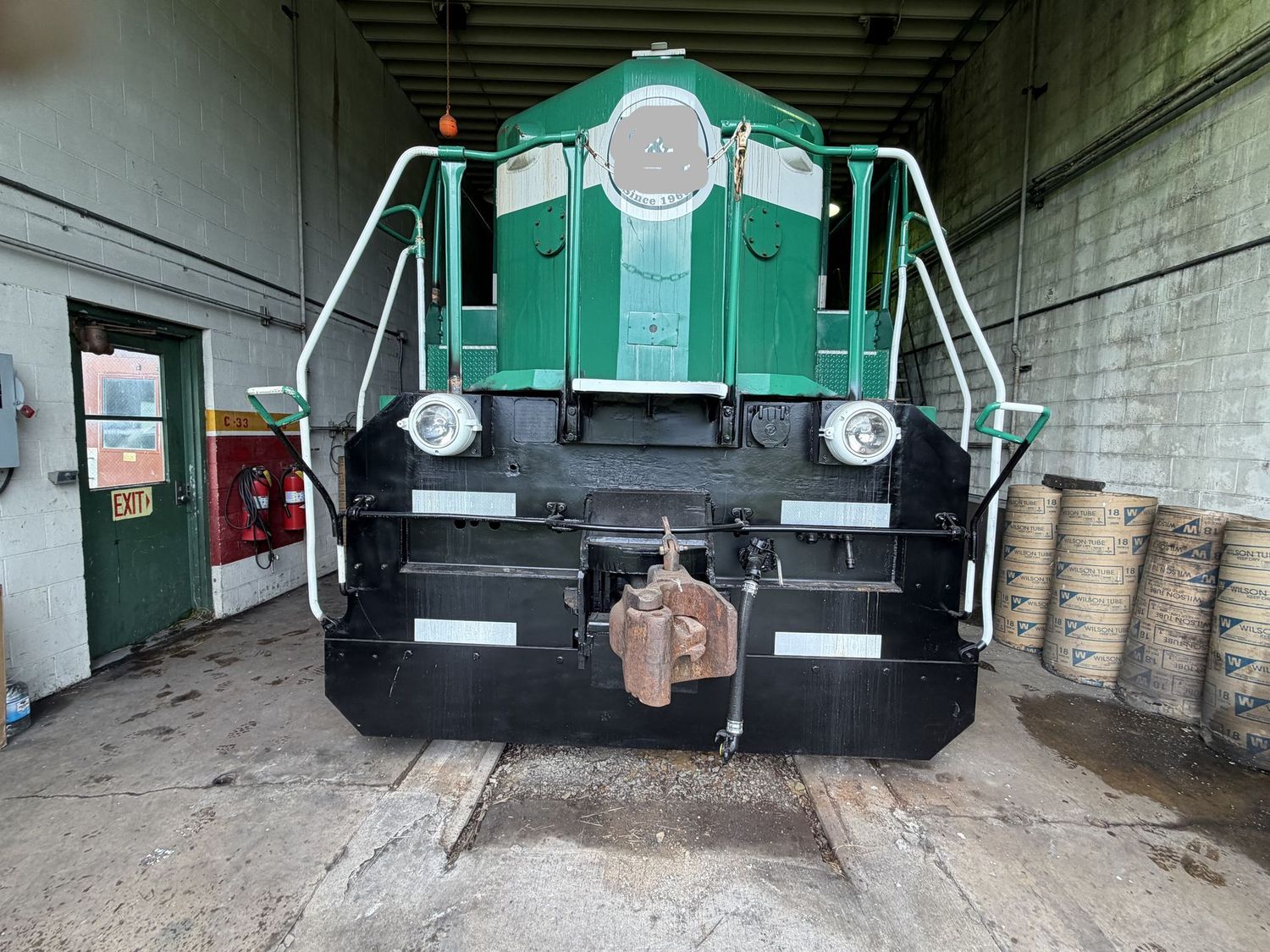

This EMD SD 18 is in very good condition. With 1800 HP and six axles for higher tractive effort.

Please scroll down past video for specifications

Engine Builder: EMD		Engine: 567D1 16 cylinder
Bore & Stroke		8.5" X 10"
RPM (Maximum / Minimum)		835 / 275
Main Generator: GM - D22		Horsepower: 1800
Gear Ratio: 62:15		Speed: 65 mph
Trucks: 6-Wheel		Configuration: C-C
Traction Motor Blowers: Electrical Drive (4)		Model: Delco
Weight: 390,000 lbs		Traction Motors: Six GM - D47
Tractive Effort (starting) 97,500 lbs @25%		Tractive Effort (continuous): 67,500 lbs @ 9.3 mph

Auxilary Generator: Delco A8102		Alternator: GMD14
Air Brake: Westinghouse		Model: 24RL
Compressor: Gardner-Denver		Model: WBO
Quantity Built: 54		Dates: 4/1960 to 3/1963
-		-
Exterior Dimensions		SD18
Total Length		60'-08"
Wheel Diameter		40"
Truck Wheel Base		13'-07"
Height to Top Engine Hood		13'-10.5"
Height to Top Cab		15'-00"
Cab Width		10'-00"
Top of Walkway		4'-08.5"
Engine Hood Width		7'-00"
Distance between Truck Centers		35'-00"
Wheel Base (locomotive)		48'-07.5"
Minimum Turning Radious		57 degrees
-		-
Fuel Oil: 2400		Lubricating Oil: 220
Engine Cooling Water: 258		Sand Capacity: 18 cu. ft.
Options: Vapor-Clarkson Steam Boiler OK4625
