SW 9 with upgraded power pack to 1200 HP alignment couplers in very good condition - lease or buy - open to offers

Store / LOCOMOTIVES
$205,000.00
In stock
Product Details

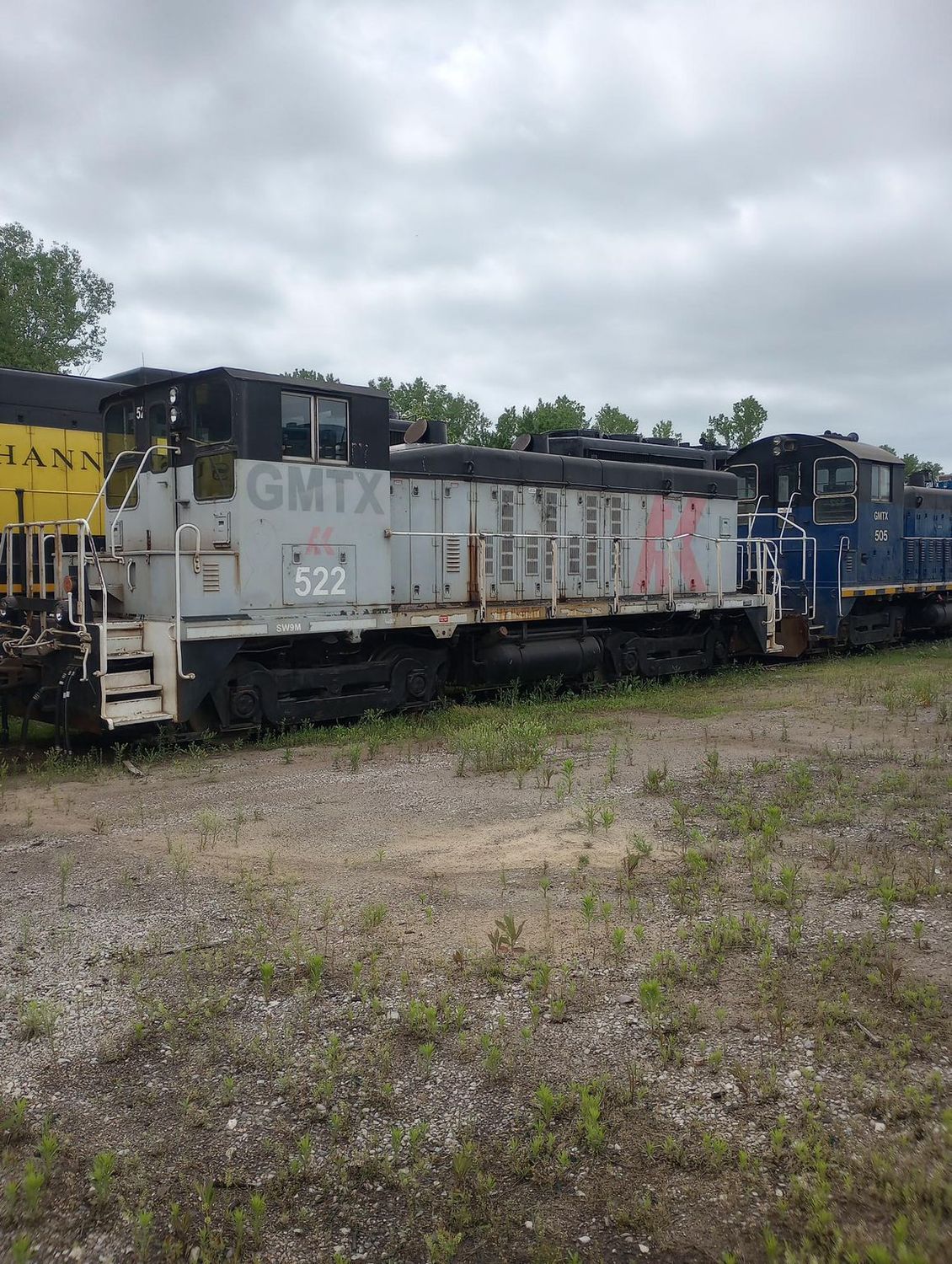

The #522 was a SW9 but the Engine was upgraded with 645C Power Packs making it a SW1200. (1200HP)
Below are the Lead Readings and Wheel report.

LOCOMOTIVE #522:

12-645CE lead readings
1     39/38       7     39/40
2     35/35       8     20/24
3     29/30       9     50/51
4     45/43       10    46/45
5     44/47       11    49/49
6     32/36       12    48/48

All cast liners

Wheel report
1     32    32
2     45    46
3     46    46
4     32    32

Engine Builder: EMD Engine: 567C 12 cylinder
Bore & Stroke 8.5" X 10"
RPM (Maximum / Minimum) 800 / 275
Main Generator: GM - D15C Horsepower: 1200
Gear Ratio: 62:15 Speed: 65 mph
Trucks: 4-Wheel Configuration: B-B
Traction Motor Blowers: Mechanical Drive (1) Model: GM
Weight: 248,000 lbs Traction Motors: GM - D37 (four)
Tractive Effort (starting) 62,000 lbs @25% Tractive Effort (continuous): 43,000 lbs @ 11.0 mph
Multiple Unit Capability: Optional Dynamic Braking: No
Auxilary Generator: GM Alternator: Delco
Air Brake: Westinghouse Model: 6BL
Compressor: Gardner-Denver Model: WXO
Quantity Built: 808 Dates: 1/1954 to 11/1965
- -
Exterior Dimensions SW9
Total Length 44'-05"
Wheel Diameter 40"
Truck Wheel Base 8'-00"
Height to Top Engine Hood 11'-09.5"
Height to Top Cab 14'-06.5"
Cab Width 9'-11.5"
Top of Walkway 4'-07.5"
Engine Hood Width 7'-00"
Distance between Truck Centers 22'-00"
Wheel Base (Locomotive) 30'-00"
Minimum Turning Radious 39 degrees
- -
Fuel Oil: 600 Lubricating Oil: 165
Engine Cooling Water: 225 Sand Capacity: 28 cu. ft.
