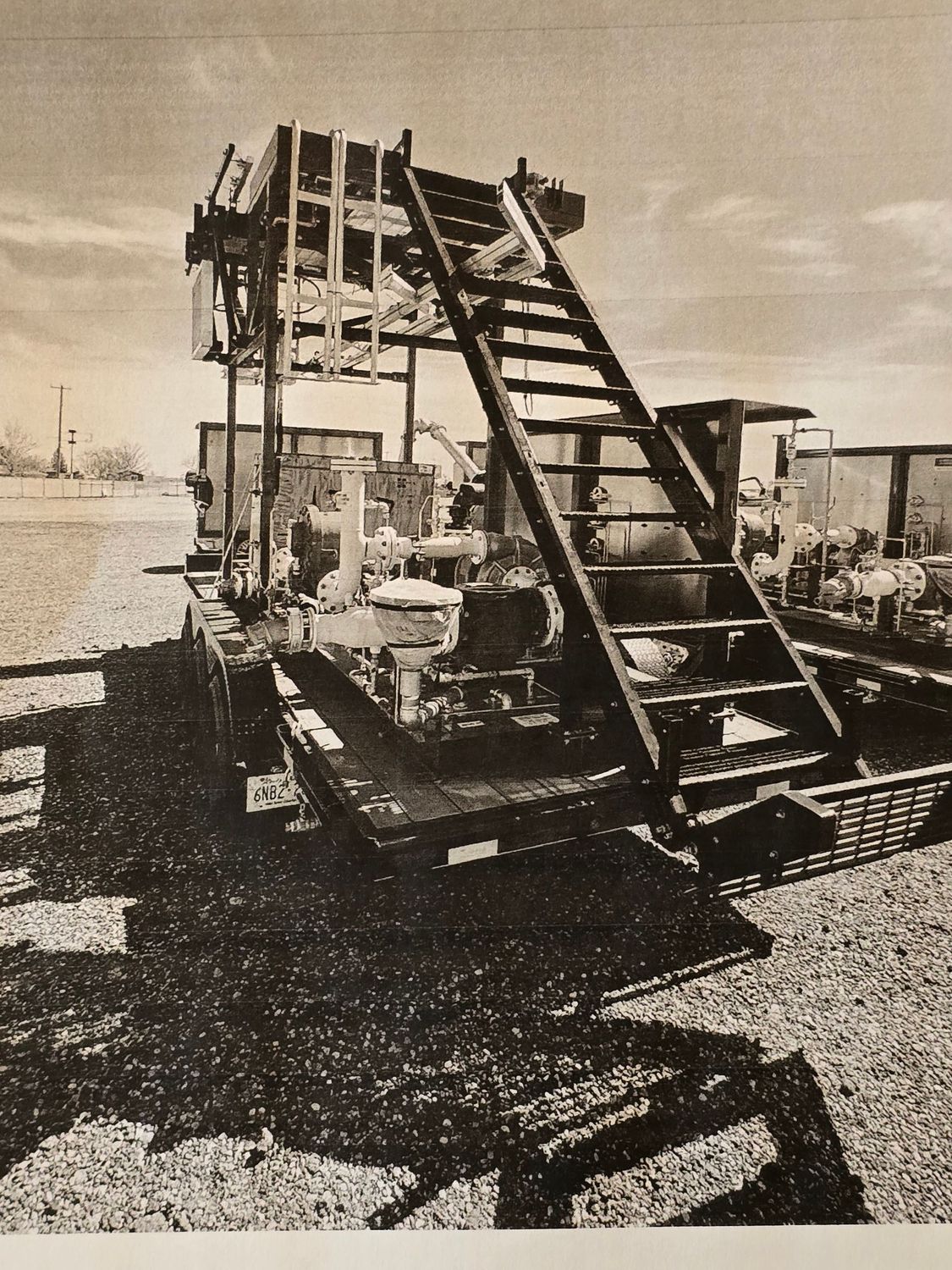

Refined Fuels Transloader

Brand new !

The transloader is a mobile unit with hose connection to rail car. The transloader is equipped with a pump with potential flow rates up to 450 GPM bottom offloading. The system utilizes a PD flow meter to measure the flow, and volume of the product. The meter is tied back into a flow computer that corrects the volume to standard conditions, allow operators to set pre-set volumes and recipes, keep records of transactions, print bill of ladings, and have remote communication options. The transloader comes equipped with a ground monitoring system and overfill controller to ensure the system does not have static build up. An air eliminator piping system is present to remove any unwanted gases from entering the metering system. The transloader comes equipped with a control valve to control flow rate, close in case of emergency, and operate in accordance with the pre-set.

1.0 Portable Transloader 1.1 Process Piping and Valves • All Piping Welded and Built to B31.3 Specifications • Piping Mainlines Will Be 6”, 4” • 4” Butterfly Valves for Inlet and Outlet Isolation • All Instrument Connecting Tubing 6SS • Blast and Paint Using Endura • Painting Spec White Liquid Lines and Vapor Lines. • 6” 40 Mesh Basket Strainer. • Low Point Drains, And High Point Vents • Containment Tank for Thermal Relief Valves • High Point Piping for Air Accumulation for Air Eliminator Valve 1.2 Instrumentation Equipment • ¾” Air Eliminator Valve • 4” Smith Prime 4 PD Meter • Toptech SMPII Pre-set Batch Controller • PT100 RTD Installed in Thermowell C/W Check Thermowell • Thermal Relief Valves on Piping • Dixon Rack Monitor w/ Auto Switching FT 7000 • 4” Smith 210 Digital Control Valve • Sight Flow Indicators on Inlet/Outlet of Package • Various Pressure Indicators 1.3 Centrifugal Pump Package • Gorman Rupp Model: RS3A31-B PUMP • Capable of Rates Up To 450 GPM • Electric Motor (20hp) @ 1800 Rpm 480v/ 3ph/60hz • Shaft Guard • VFD Speed Controlled 1.4 Electrical • Complete Electrical Wired to Class 1 Div. 1, Class 1 Div. 2 & General Area • (1) ESD Button • Pump Jog Station 1.5 Trailer • Tandem-Axle Bumper Tow Trailer • Rated for weight of package • CVIP on Trailer 1.6 Truck Side Load Arm • 4” API Coupler • 4” Aluminum “A” Frame Load Arm
