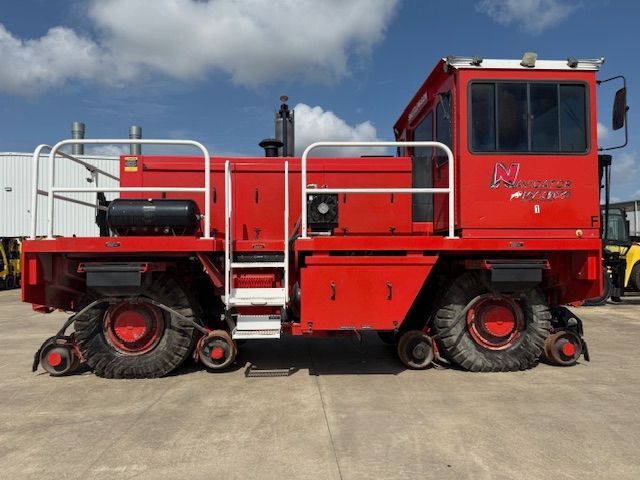

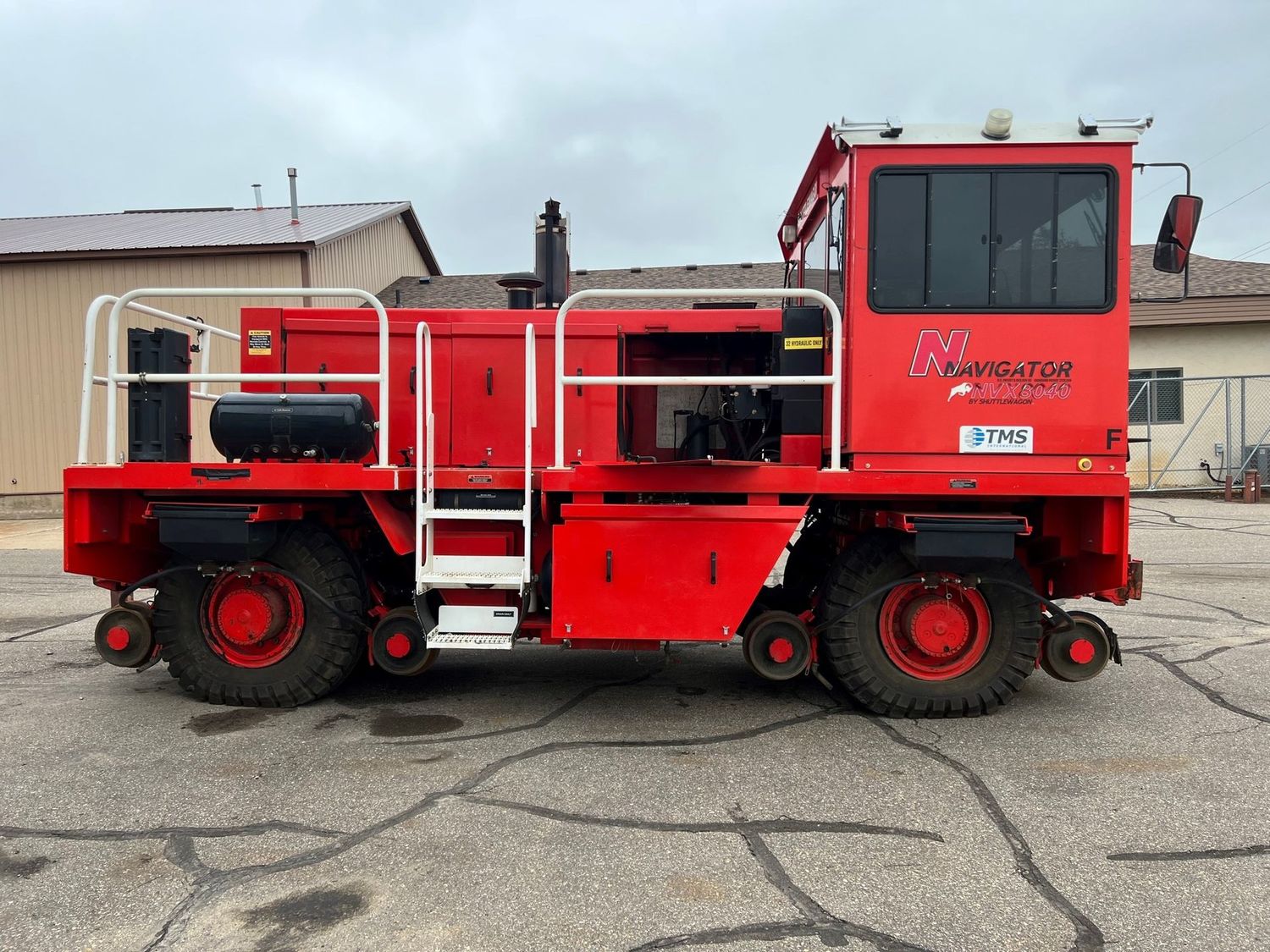

Ready to roll 2019 Shuttlewagon NVX 735
+3

Ready to roll 2019 Shuttlewagon NVX 735

00033
$288,000.00
In stock
1
Product Details
  • Drawbar Pull: 50,000 lbs. (222 kN)
  • Drivetrain: Engine power transmitted through a torque converter and transmission to heavy-duty no-spin differential and planetary axle assemblies.
  • Engine: Cummins QSL 9.0 U.S EPA Tier 4 Final (electronic), 300 HP @ 2200 RPM
  • Transmission and Torque Converter: John Deere - Funk, four speeds forward and reverse
  • Drive Shafts: Constant velocity universal shafts - transmission to axle
  • Axles: Two Meriter heavy duty, planetary type Frame: Heavy-duty deck plate
  • Vehicle Brakes: Air-over-hydraulic-actuated high-pressure ABS disk brakes (dual caliper on rear disc). Dual master cylinders.
  • Train Brakes: Dual compressor system with one direct engine-driven and one driven off of transmission PTO.
  • Parking Brake: Internal disc, spring applied - hydraulically released.
  • Rail Guide Wheels: Eight 16" (406 mm) diameter AAR profile Aus tempered ductile iron guide wheels. One (1) each at front and rear of reach drive wheel. Rail gauge is 56 1/2" (1435 mm). This patented rail gear guidance system is designed to guide drive axles around the tightest curves. Each rail wheel is equipped with graphite lubricating stick.
  • Tires and Rims: 14.000R24*** radial tube-type mounted on 1024AG rims and solid disc inset wheels.
  • Electrical System: 12 volt DC 160 amp. Alternator with dual 950 CCA batteries.
  • Hydraulic System: Constant pressure hydraulic system with 2.5 gallon, piston-type accumulator backup.
  • Couplers: AAR direct couple "non-weight transfer" type coupler on each end. These couplers are hydraulically positioned on a slide bar. While moving cars, a float position allows coupler to slide freely to negotiate the tightest curves.
  • Sanders: Four (4) sand boxes with eight (8) electrically controlled, air-operated nozzles.
  • Operator Cab: Totally enclosed 360-degree visibility, sound insulated, full width 120"; (3048 mm), 60" (1524 mm deep), 72" (1829 mm) ceiling height. Two (2) air-ride, "high back&", 4-way positionable operator seats - one on either side of the cab. 180-degree rotating operator's console with modern, color digital display. Rear coupler alignment camera. Cab air conditioning.
  • Lights: Operator's cab, interior dome, one clear, one red. Two (2) roof-mounted strobe lights and LED head, tail, and brake lights.
  • Warning and Safety Devices: Dual blast-type, roof-mounted air horns with automatic backup alarm for road operation.
  • Total hours 8350
Save this product for later

Browse our items for sale and lease

All units posted are sold as is whereas, with no warranties expressed by Railmover.com, unless otherwise indicated by the seller. All information is provided by the seller and is as accurate as provided. We suggest always inspecting before you purchase.

Equipment is located around North America.  Scroll down for additional pages or click on next page
