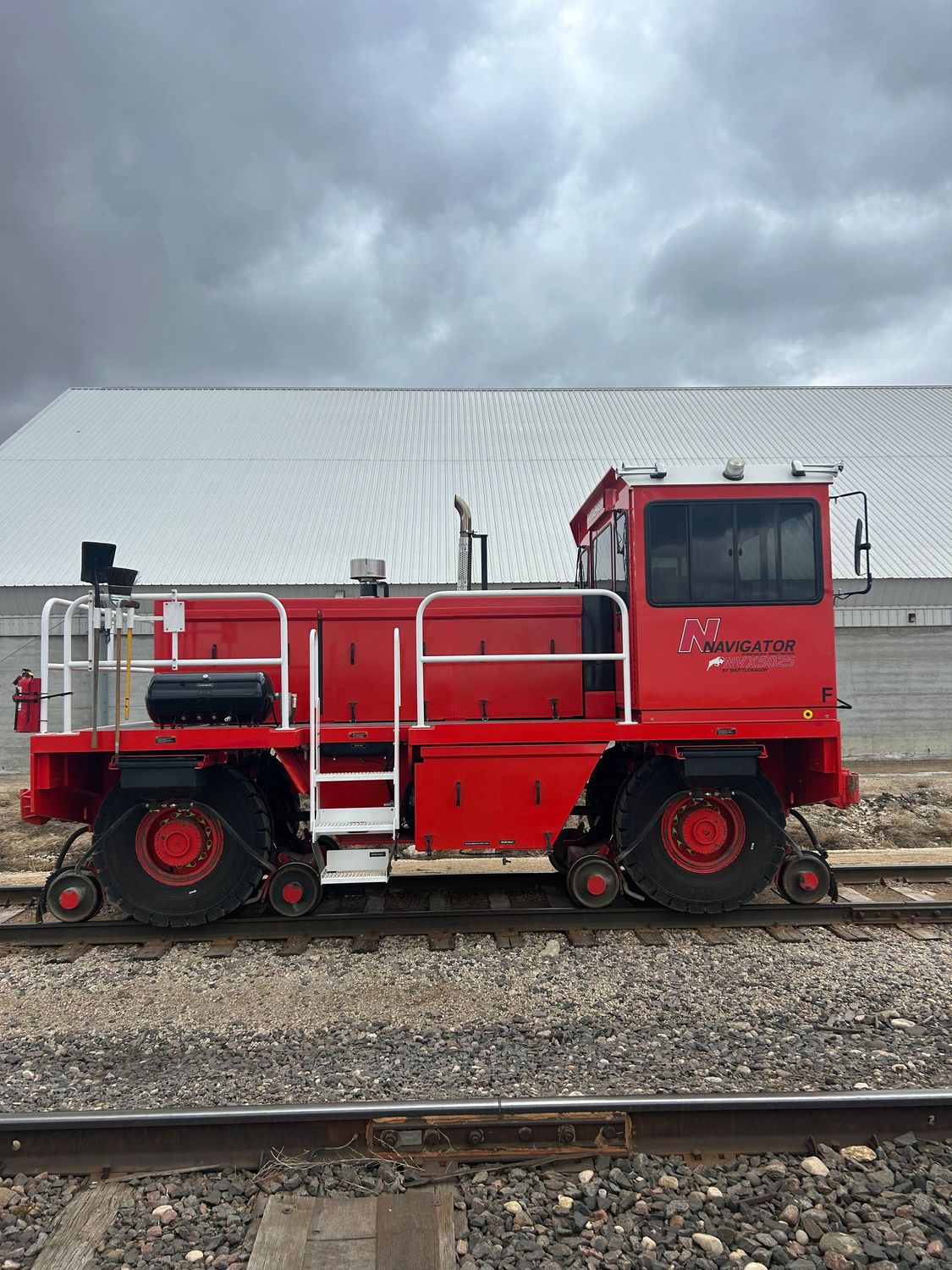

2016 Nordco NVX 8040

This NVX 8040 is in good condition with approximately 6400 hours

• Drawbar Pull: 60,000 lbs. (267 kN)
• Drivetrain: Engine power transmitted through a torque converter and transmission to heavy-duty no-spin differential and planetary axle assemblies.
• Engine: Cummins QSL 9.0 U.S EPA Tier 4 Final (electronic), 300 HP @ 2200 RPM
• Transmission and Torque Converter: John Deere – Funk, four speeds forward and reverse
• Drive Shafts: Constant velocity universal shafts - transmission to axle
• Axles: Two Meriter heavy duty, planetary type
• Frame: Heavy-duty 5"x120"x310" deck plate
• Vehicle Brakes: Air-over-hydraulic-actuated high-pressure ABS disk brakes (dual caliper on rear disc). Dual master cylinders (each axle).
• Train Brakes: Dual compressor system with one direct engine-driven and one driven off of transmission PTO (60 cfm total capacity Tier 3). Single engine-driven compressor for Tier IV(i) with total capacity of 96 cfm.
• Parking Brake: Internal disc, spring applied - hydraulically released.
• Rail Guide Wheels: Eight 16" (406 mm) diameter AAR profile austempered ductile iron guide wheels. One (1) each at front and rear of reach drive wheel. Rail gauge is 56 ½" (1435 mm). This rail gear guidance system is designed to guide drive axles around the tightest curves. Each rail wheel is equipped with graphite lubricating stick.
• Tires and Rims: 14.000R24*** radial tube-type mounted on 1024AG rims and solid disc inset wheels.
• Electrical System: 12 volt DC 160 amp. Alternator with dual 950 CCA batteries.
• Hydraulic System: Constant pressure hydraulic system with 2.5 gallon, piston-type accumulator backup.
• Couplers: AAR direct couple "non-weight transfer" type coupler on each end. These couplers are hydraulically positioned on a slide bar. While moving cars, a float position allows coupler to slide freely to negotiate the tightest curves.
• Sanders: Four (4) sand boxes with eight (8) electrically controlled, air-operated nozzles.
• Operator Cab: Totally enclosed 360-degree visibility, sound insulated, full width 120" (3048 mm), 60" (1524 mm deep), 72" (1829 mm) ceiling height. Two (2) air-ride, "high back", 4-way positionable operator seats- one on either side of the cab. 180-degree rotating operator's console with modern, color digital display. Rear coupler alignment camera. Cab air conditioning.
• Lights: Operator's cab, interior dome, one clear, one red. Two (2) roof-mounted strobe lights and LED head, tail, and brake lights.
• Warning and Safety Devices: Dual blast-type, roof-mounted air horns with automatic backup alarm for road operation.
