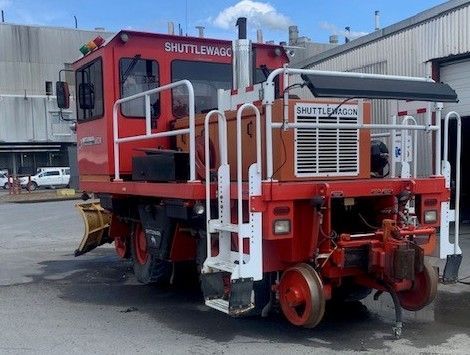

2010 Shuttlewagon SWX 35 for sale
+4
+3
+2

2010 Shuttlewagon SWX 35 for sale

Store / MOBILE CAR MOVERS
$245,000.00
In stock
Product Details

2010 SWX 735

Hours: 2850
  • Drawbar Pull:
    50,000 Ibs.     Drive Train:
    Engine Power transmitted through a torque converter and transmission to axle differntials and planetary axle hubs.     Engine:
    Cummins QSC 8.3 U.S. EP Tier III (electronic)
    300H.P. @ 2200 RPM     Transmission and Torque Converter:
    John Deere – Funk, four speeds forward and reverse both on rail and on road movement     Axles:
    Axle Tech PSC 826 Heaw Duty Planetary drive steer axle on front with PRLC Heavy Duty Planetary rigid rear axle     Frame:
    6″ welded steel plate     Vehicle Brakes:
    Air over hydraulic actuated high pressure ABS disk brakes with Haldex pressure converter (master cylinder) front and rear     Train Air Brakes:
    75fm compressor with 30 gallon air tank     Rail Wheels:
    24-3/4″ (629mm) heat treated cast steel     Tires & Rims:
    14.00R24 E2A Tube Type     Electrical System:
    12 Volt DC 160 amp alternator with Dual 950 CCA Batteries.     Hydraulic System:
    Constant pressure hydraulic system with 5 gallon accumulator back up     Couplers:
    Hydraulically positioned sliding (AAR) direct non-weight transfer type couplers on each end     Operator’s Cab:
    Sound insulated full width 120″ wide, 60″ deep 72″ ceiling height cab with 2 air-ride 4 way positionable operator seats on either side of cab. 180 degree rotating operator’s console with color digital display.     Warning and Safety Devices:
    Blast type air horn with automatic backup alarm for road operation. Roof mounted strobe lights and LED tail, turn and brake lights. High visibility powder coated hand rails
    Dimensions:
    Height: 143.5″ / 3644mm
    Width: 120″ / 3048mm
    Length (to end of couplers): 260″ / 6604mm
    Wheel Base: 98 / 2489mm
    Weight: 73,000 lbs / 33,112 kgs     Performance:
    Forward and reverse for both road and rail     First Gear:
    0-2 mph / 0-3 kph
    Second Gear:
    0-5 mph / 0-8 kph
    Third Gear:
    0-9 mph / 0-14 kph
    Fourth Gear:
    0-18 mph / 0-29 kph     Standard Features:
    ABS vehicle brakes
    Anti-slip traction control (on-rail operations)
    Can-Bus electrical system
    50 gallon hydraulic reservoir
    90 gallon fuel tank
    Three 12 volt power receptacles in cab
    Tinted cabin glass
    Door mounted windshield wipers
    Non-slip diamon pattern cushioned floor mat
    White and red dome light
    Two map spotlights
    Engine diagnostics adapter in console     Optional features:
    Radio remote control
    Wheel flange lubricators
    Air conditioning
    V blade snow piw
    Engine oil pan, transmission oil and hydraulic reservoir heaters
    Cold weather starting package
    Cab controlled exterior spotlights
    Switchman emergency shutdown     Sanders:
    Eight air operated, electronically controlled     Note: Actual drawbar pull obtained varies with rail and weather conditions. Dimensions and weight listed do not include any optional equipment. Specifications are subject to change without notice
